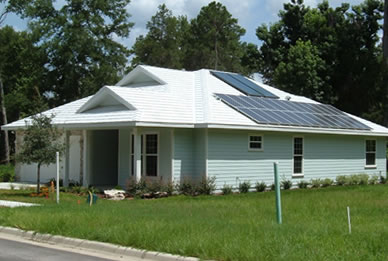

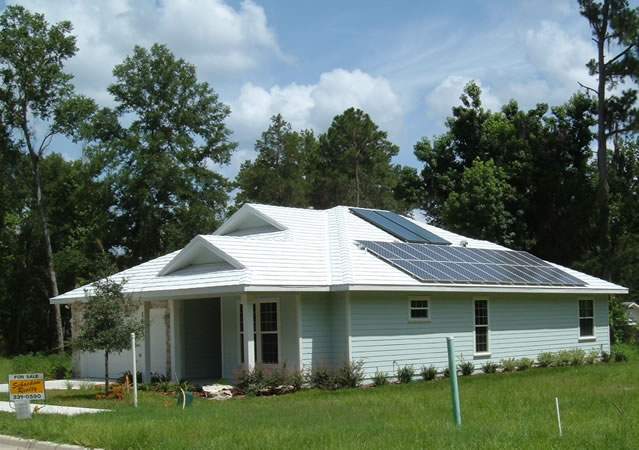

This research site monitors the electrical consumption as well as the interior space conditions of a near zero energy home in Gainesville, Florida. It is a single story three bedroom/two bath home with 1519 sqft of living space and a preliminary HERS rating of 16. Energy consumption is offset by a 4.2 kw photovaltaic system. It has double pane, low e vinyl windows and a sealed attic with R-30 open cell spray foam insulation. Heating and cooling is provided by a 2 ton, open loop, geothermal heat pump. The house has all Energy Star appliances, water star plumbing fixtures, and an 80 sq. ft/120 gallon drainback solar hot water system. All solar systems are west facing and has been occupied since March 2009. Data collection began in July 2008.
|
|
|
May 17 2013, 00:15 -To- May 18 2013, 00:00 EST |
Total Electric Energy Use |
Peak kW |
kWatt-hrs |
| Total consumption |
3.8 |
23.1 |
| PV production |
2.6 |
16.8 |
| Fed back to utility |
2.3 |
10.9 |
| PV used by house |
1.4 |
6.0 |
| Net purchased electricity |
3.7 |
6.3 |
Selected Electric Energy End Use |
Peak kW |
kWatt-hrs |
| Air Handler 3/8 (prev geo hp) |
0.4 |
4.0 |
| Condenser 3/8 (prev well pump) |
2.6 |
6.4 |
| Hot water |
0.0 |
0.0 |
| Other |
1.8 |
12.7 |
Indoor Conditions |
Avg |
Min/Max |
| Thermostat Temp (F) |
77.6 |
76.0/ 79.9 |
| Thermostat RH (%) |
54.9 |
43.2/ 59.4 |
Weather Conditions |
Avg/Total |
Min/Max |
| Ambient Temp (F) |
83.7 |
72.6/ 96.9 |
| Ambient RH (%) |
69.1 |
41.3/ 93.4 |
| Horz. Irradiation (wh/m2) |
6150.1 |
-0.1/ 983.0 |
| PV Plane Irradiation (wh/m2) |
6256.8 |
-0.6/ 1097.0 |
|
|
|
|
